Efficient Water Transfer for Gardens, Pools & Shallow Wells

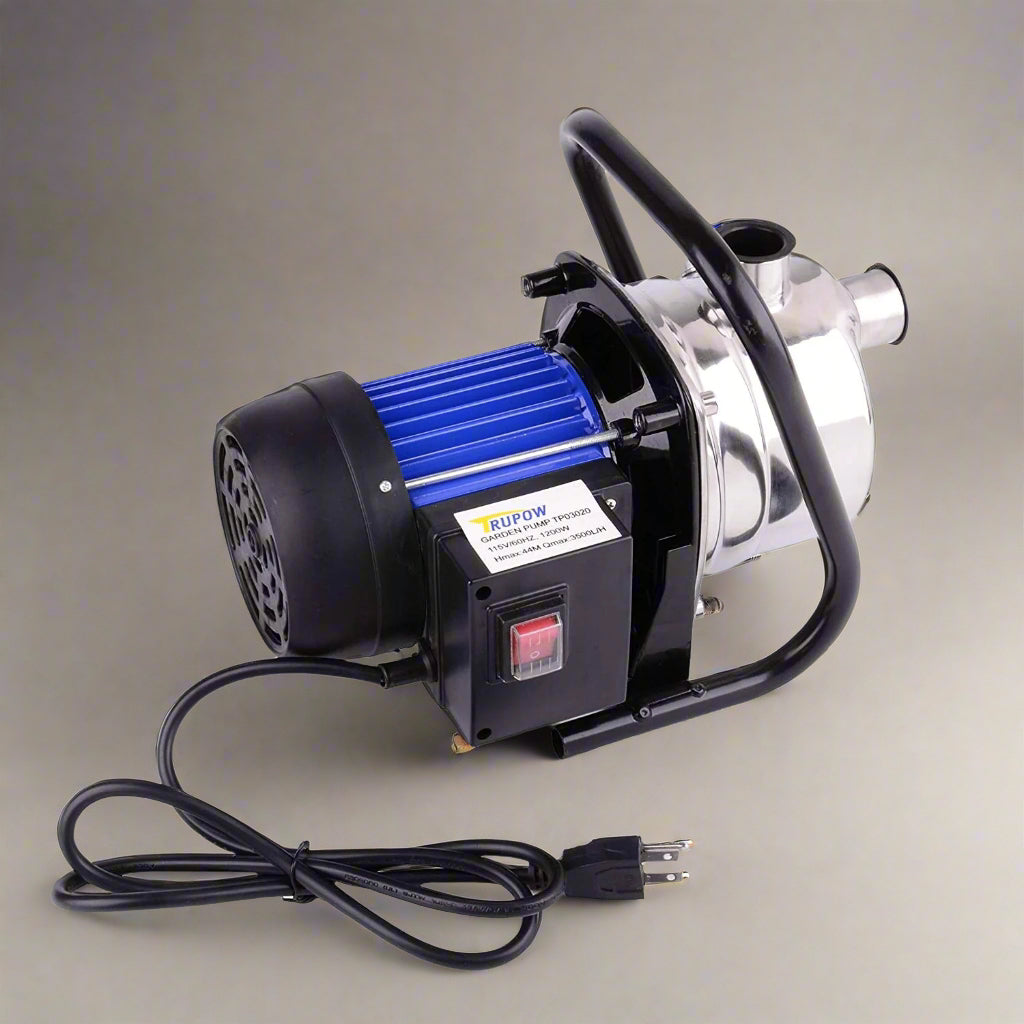

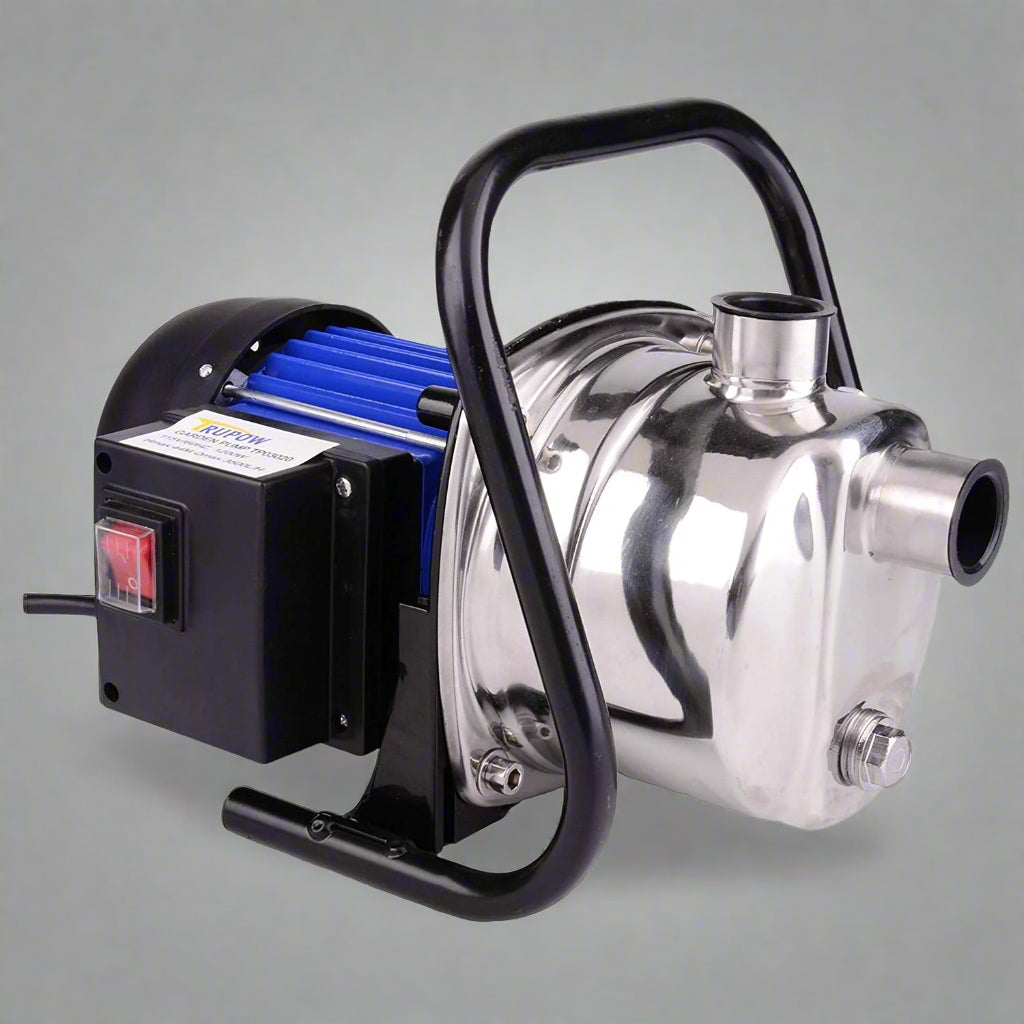

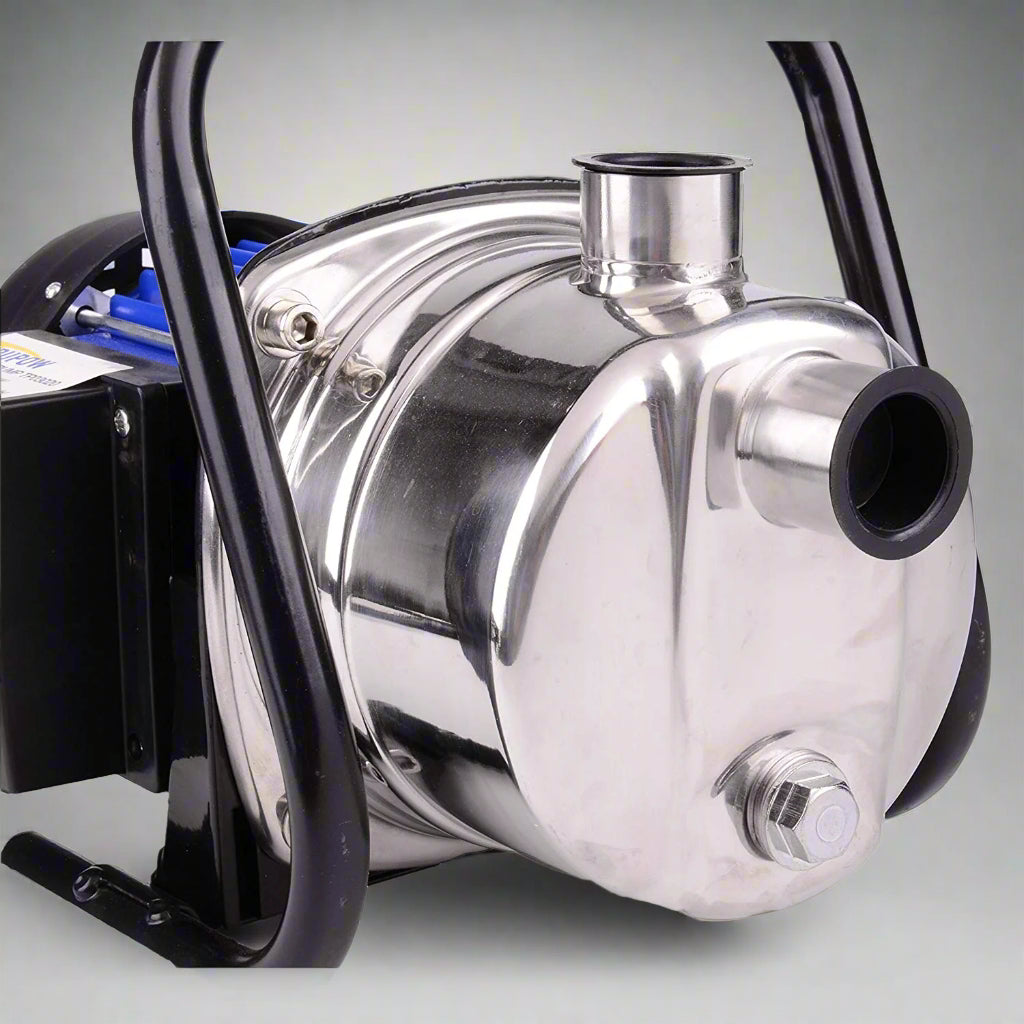

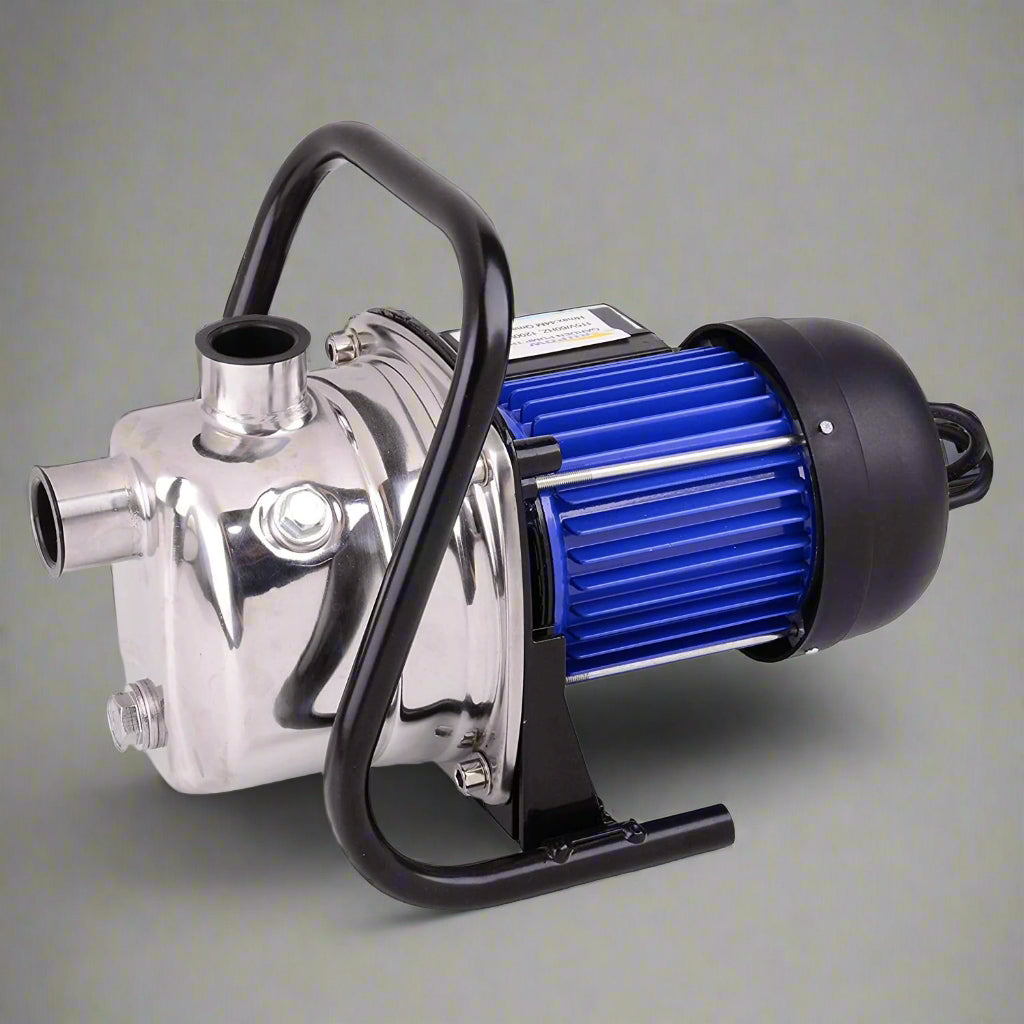

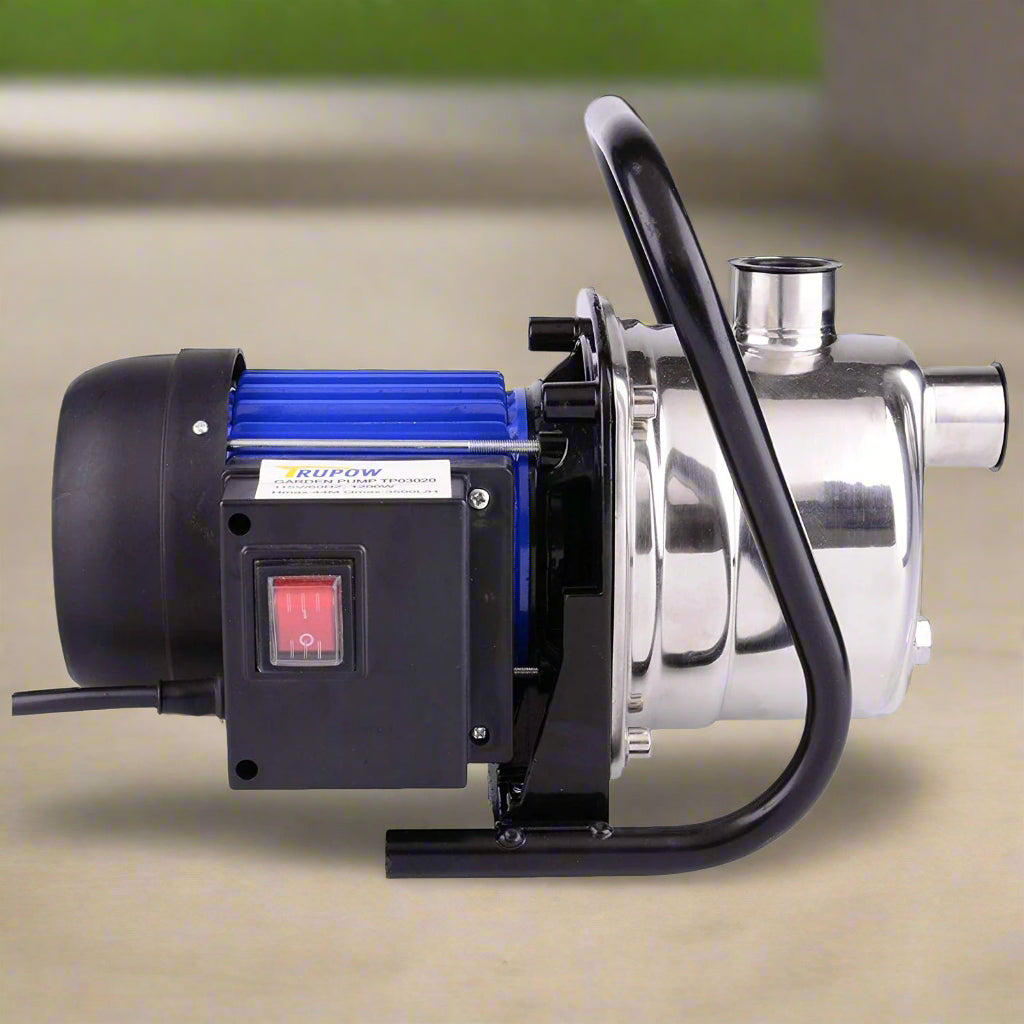

The TP3020 is a high-performance shallow well jet pump with durable stainless steel construction. Designed for domestic and light commercial use, it delivers powerful water transfer with minimal energy usage.

⚙️ Key Specifications:

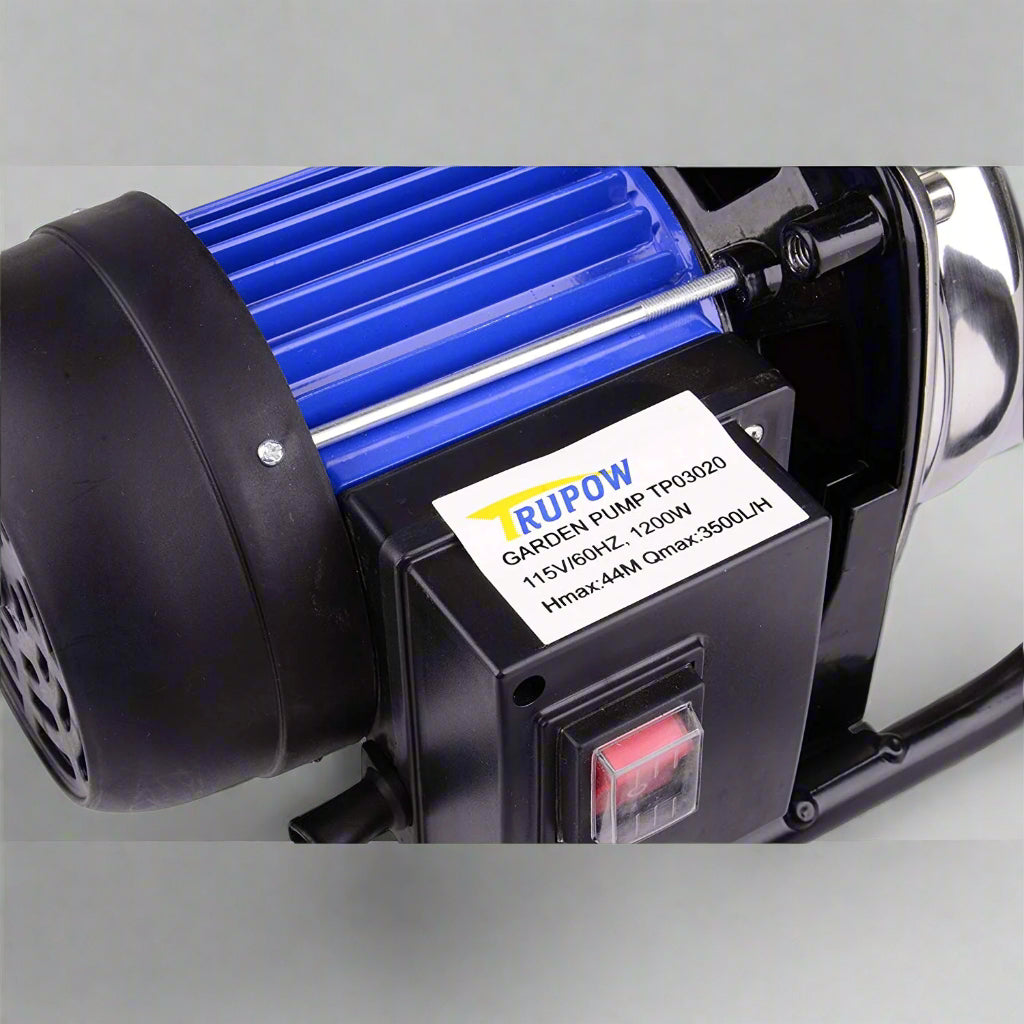

• Motor Power: 1200W / 1.6 HP Copper Motor – energy-efficient and long-lasting

• Max Flow Rate: 3500L/h (925 GPH) – supports high-output irrigation

• Max Suction Height: 23 ft – draws water efficiently from shallow wells

• Max Delivery Height: 144 ft – ideal for multi-story or uphill water distribution

• Max Pressure: 66 PSI – for pressurized irrigation or household systems

• Inlet/Outlet Size: 1" NPT – compatible with most garden and irrigation hoses

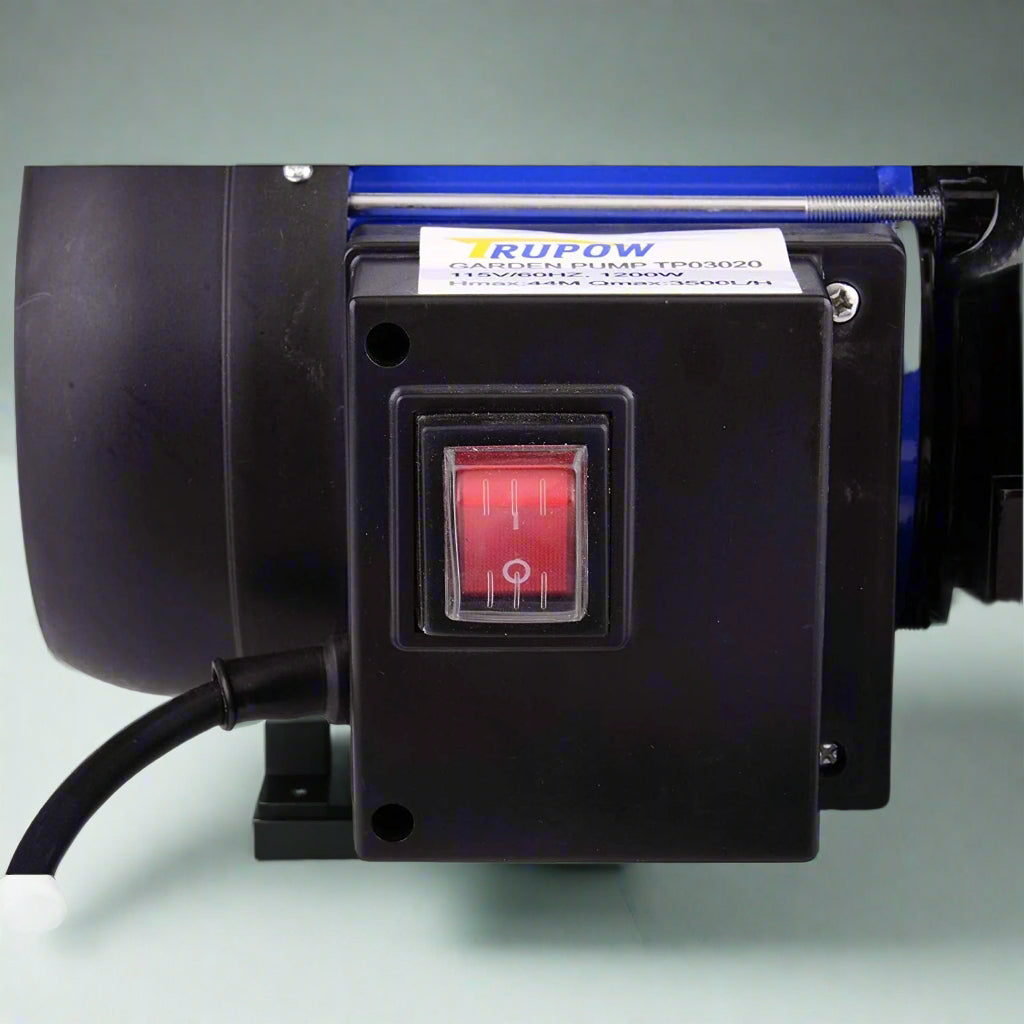

• Waterproof On/Off Switch: Reliable and safe control

• Cord Length: 4 ft – gives installation flexibility

🏡 Ideal Applications:

• Garden irrigation systems

• Backyard water transfer

• Swimming pools and large water tanks

• Residential shallow well setups

• Pressure boosting for domestic use

❓ FAQs (Frequently Asked Questions)

Q: Can this be used with a rainwater collection system?
A: Yes, it’s perfect for rainwater harvesting systems and cisterns.

Q: What is the water source depth limit?
A: The maximum suction height is 23 ft for shallow water sources.

Q: Is the pump weather-resistant?
A: The stainless steel housing and waterproof switch make it suitable for outdoor installation (cover recommended).

Q: Does it include a pressure switch or tank?
A: This model comes with an integrated on/off switch. External pressure tanks/switches are sold separately.
